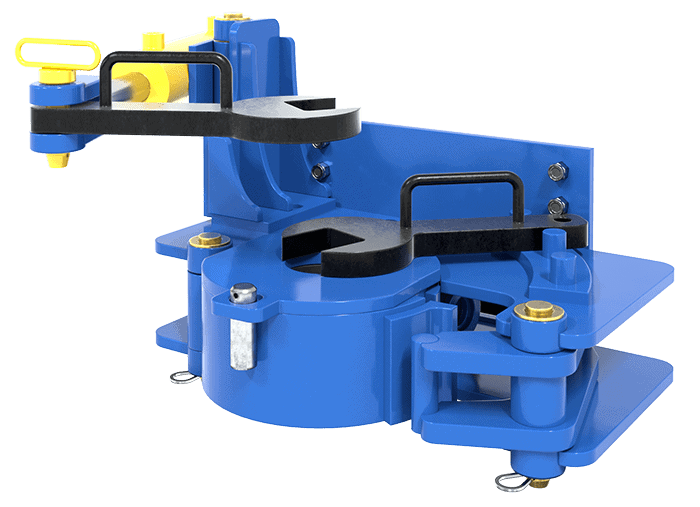

Double Breakout Clamps

A max 8.8″ ID for casings and min 2.5″ ID for drill rods. The Double Breakout Clamps come with a top hydraulic breakout cylinder set of jaws and a bottom set of fixed grip jaws. The grip jaws have hardened steel grip ‘teeth’ to securely hold casings and rods. Capable of gripping of gripping and breaking out even the toughest casings.

Watch the Video

8.8" ID
Maximum ID
1.5"
Minimum ID
02
Other Size Options

Mincon’s modular Double Breakout Clamps can quickly be added to our Rock Drill drilling rigs and M2 Series drill mast attachments.

Their high breakout power and modular construction make them ideal for retrofit applications on existing drill rigs or drill mast attachments.

MODULAR FOR MORE OPTIONS

A modular design philosophy means that our Rock Drill rigs and mast attachments can be quickly customized to your application and tooling setup. Need to breakout casings? Choose our Double Breakout Clamps system that can easily be added to your equipment specification.

  • Modular options give you control over your drilling unit setup
  • Easily retrofit our modular options on to existing drilling rigs
  • Modular design makes customizations easier and lower cost
  • Adds to easy maintenance and parts replacement
Double Breakout Clamps

Applications

  • Foundation
  • Geothermal
  • Water Well
  • Micro piling
  • Underpinning
  • Pre-drilling
  • Geotechnical

Specification

EXPAND ALL
DescriptionImperialMetric
Max ID8.8″ 223 mm
Min ID1.5″ 40 mm
Height15″393 mm
Casing Recommendation3/8″ wall minimum10 mm wall minimum
Available as Single SetYes. (not upgradable to double set)
Available for retrofitYes.
DescriptionImperialMetric
Pressure2,900 psi 200 bar
Flow3.5 gpm13 lpm
Mount Type8-Bolt Back/Bottom Plate
Cylinders Included5 – Top & Bottom Clamps + Breakout.
